DVR |
Video & Audio |
Codec |

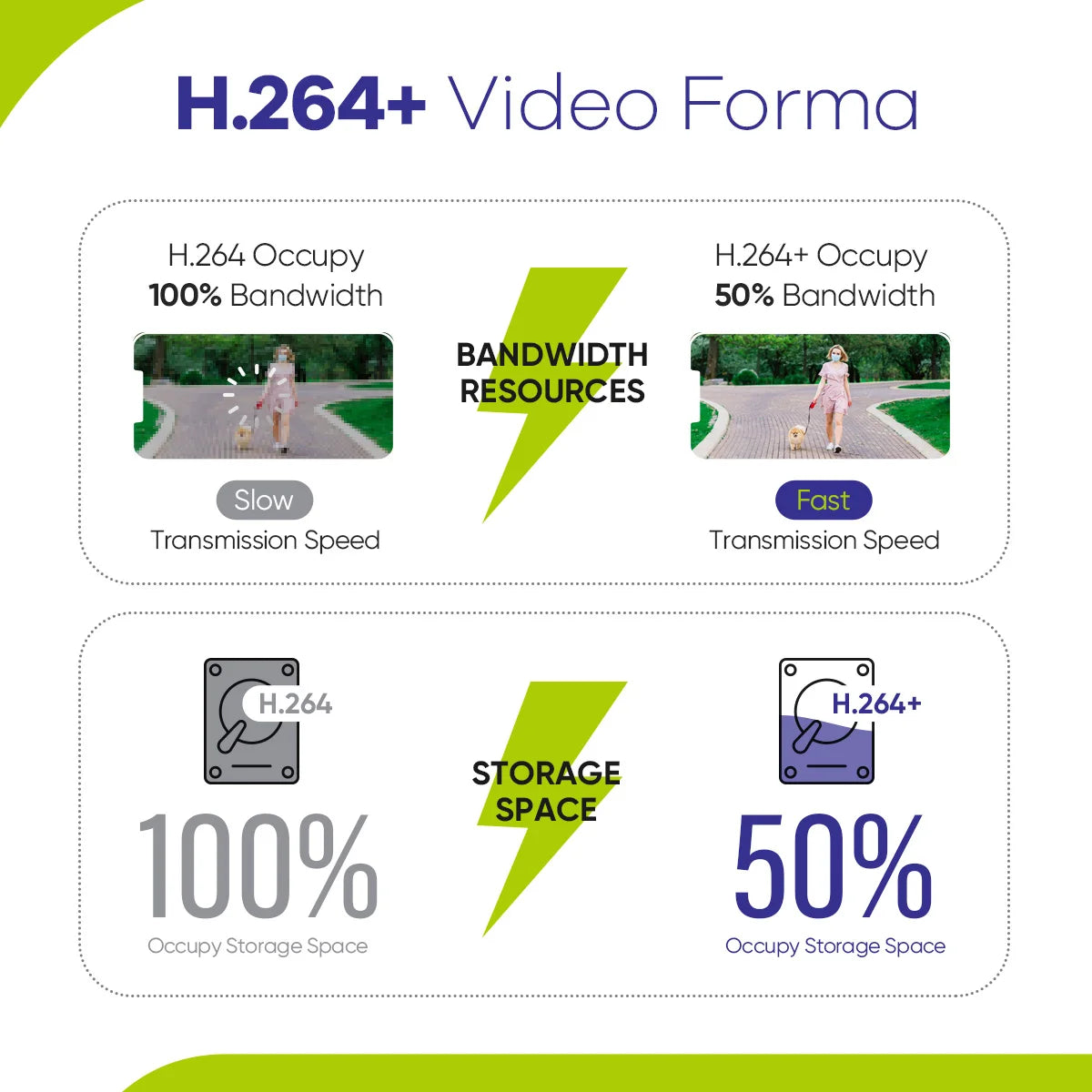

H.264+ |
Video input |
16*BNC |
HDMI output |
1*HDMI (MAX:1080P) |
VGA output |
1*VGA (MAX:1080P) |
Audio I/O |
2/1 |
Encode |
16*1080N@15fps |
Decode |
16*1080N@15fps |

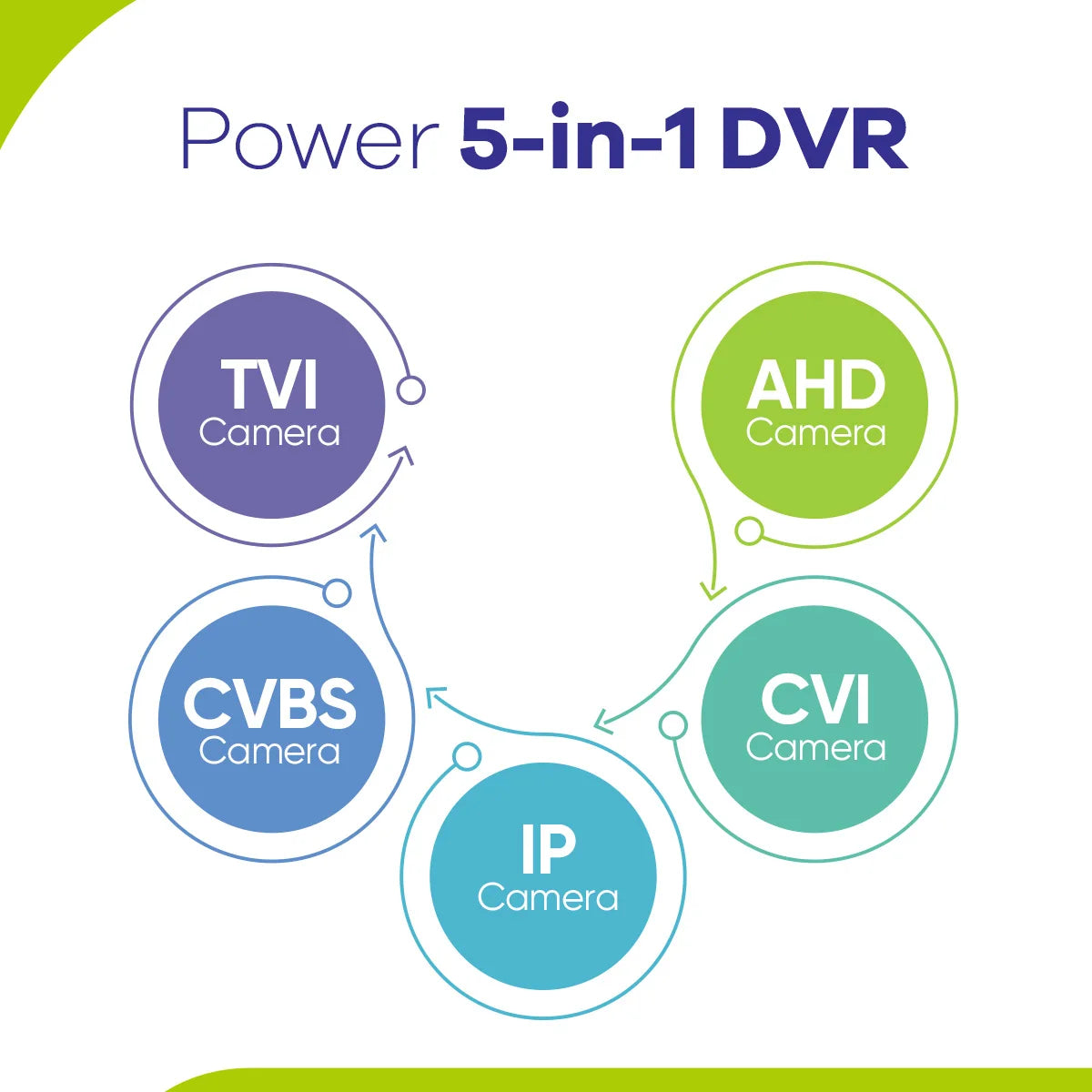

Multi-mode |
Analog: 16*1080N@15fps; |
Hybird: 16*1080N@15fps(analog)+4*1080P |
IP: 16*1080P；8*5MP |
Playback |
16CH (Analog mode) |
Compression |
G.711a |
Intercom |
Support |
Hard Drive |
HDD |
1*SATA interface |
HDD Capacity |
Up to 8TB Capacity |
Management |
Record mode |
Manual>Motion detection>Schedule |
Inquire mode |
Inquire by Time/Calendar/Event/Channel |
Storage mode |
Sata HDD |
Backup |
Network, USB storage |

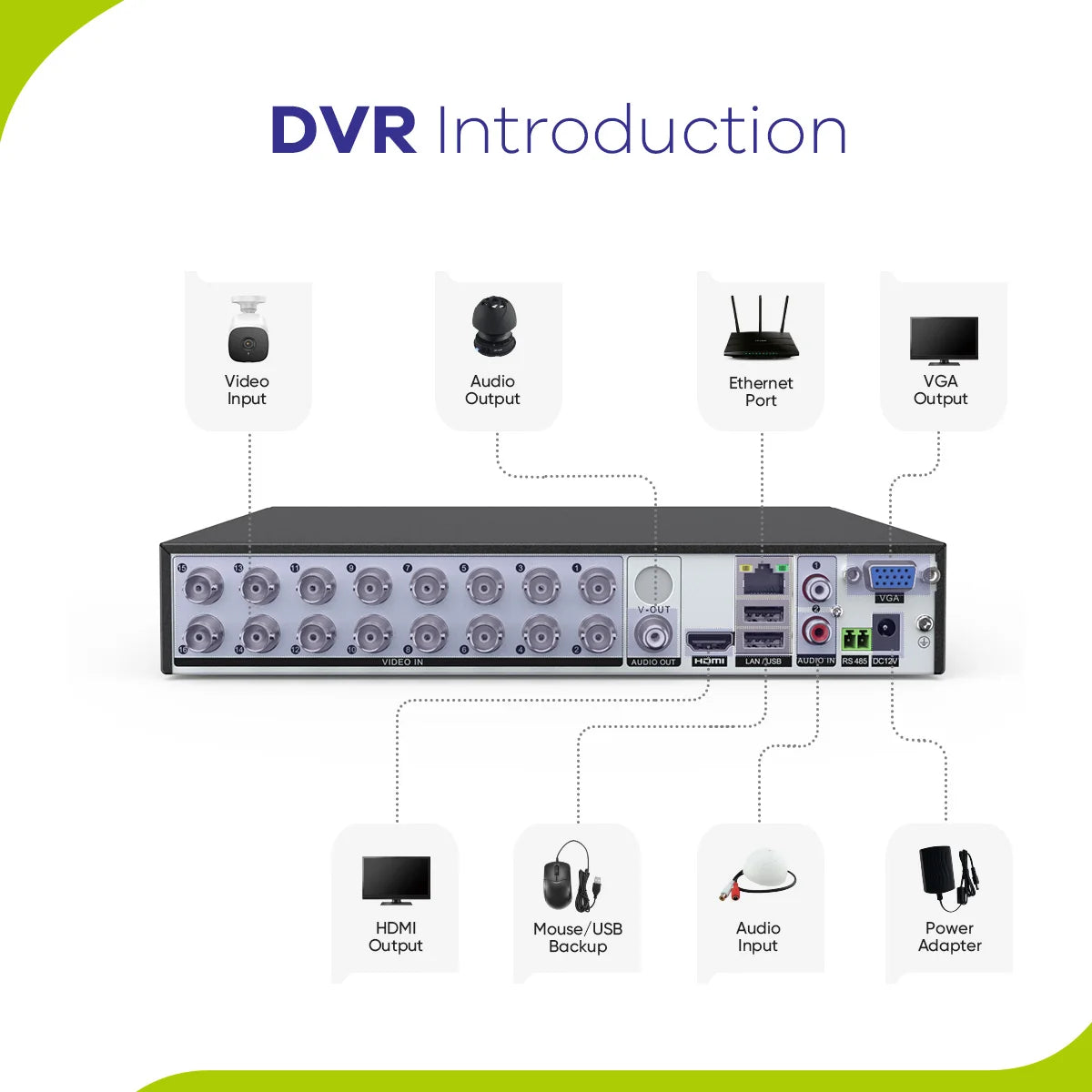

External Interface |
Ethernet port |
1*10/100Mbps Ethernet port, RJ45 port |
Alarm I/O |
0/0 |
PTZ control |
1*RS485, Support for multiple PTZ protocol |
USB Port |
2*USB2.0 ports |
General |
Power supply |
12V/2A |
Consumption |
<10W(Without HDD） |
Temperature |
0℃- + 55℃ |
Humidity |
10% -90% RH |
Dimension |
255(L)* 236mm(W)* 44mm(H) |
Weight |
Around 1KG |
