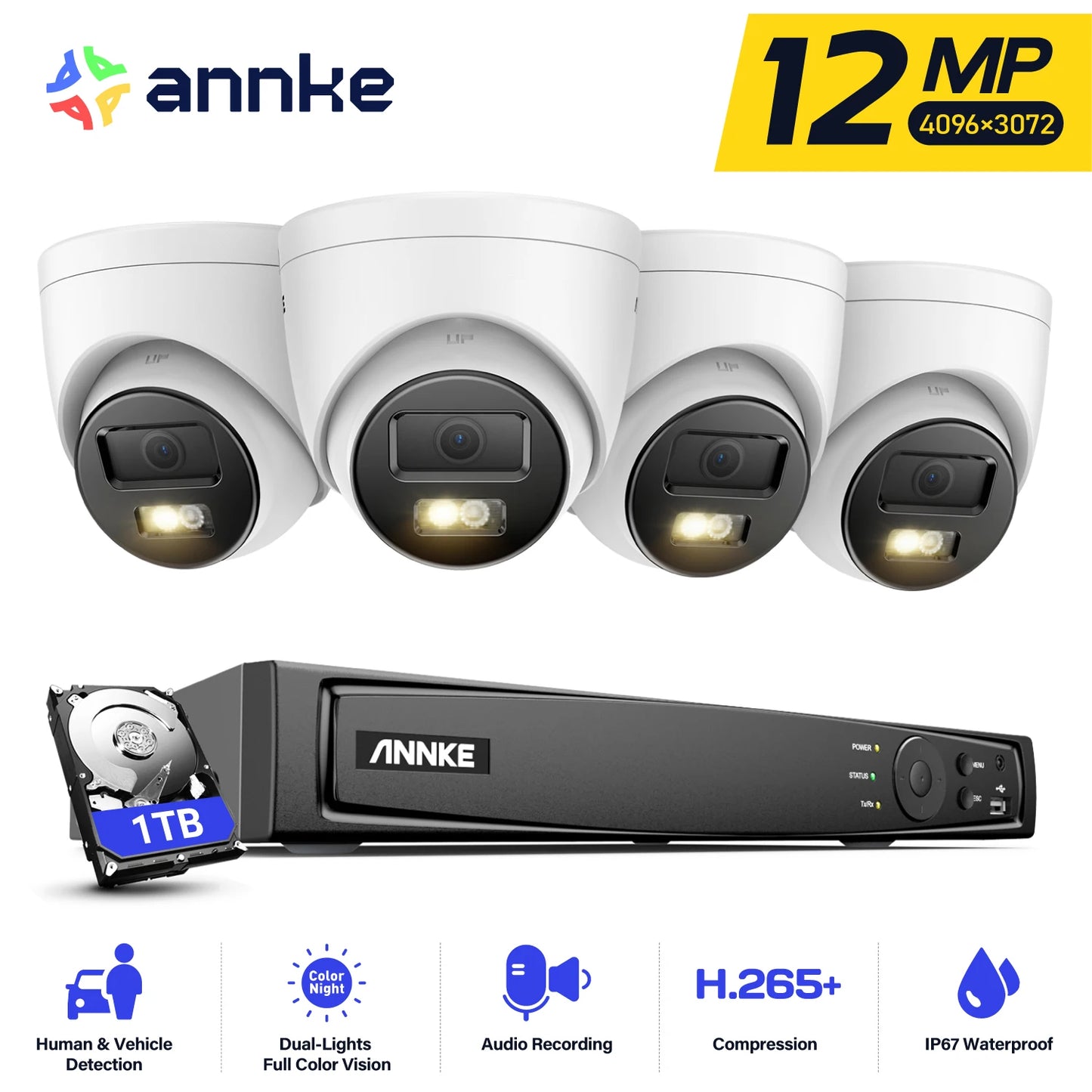

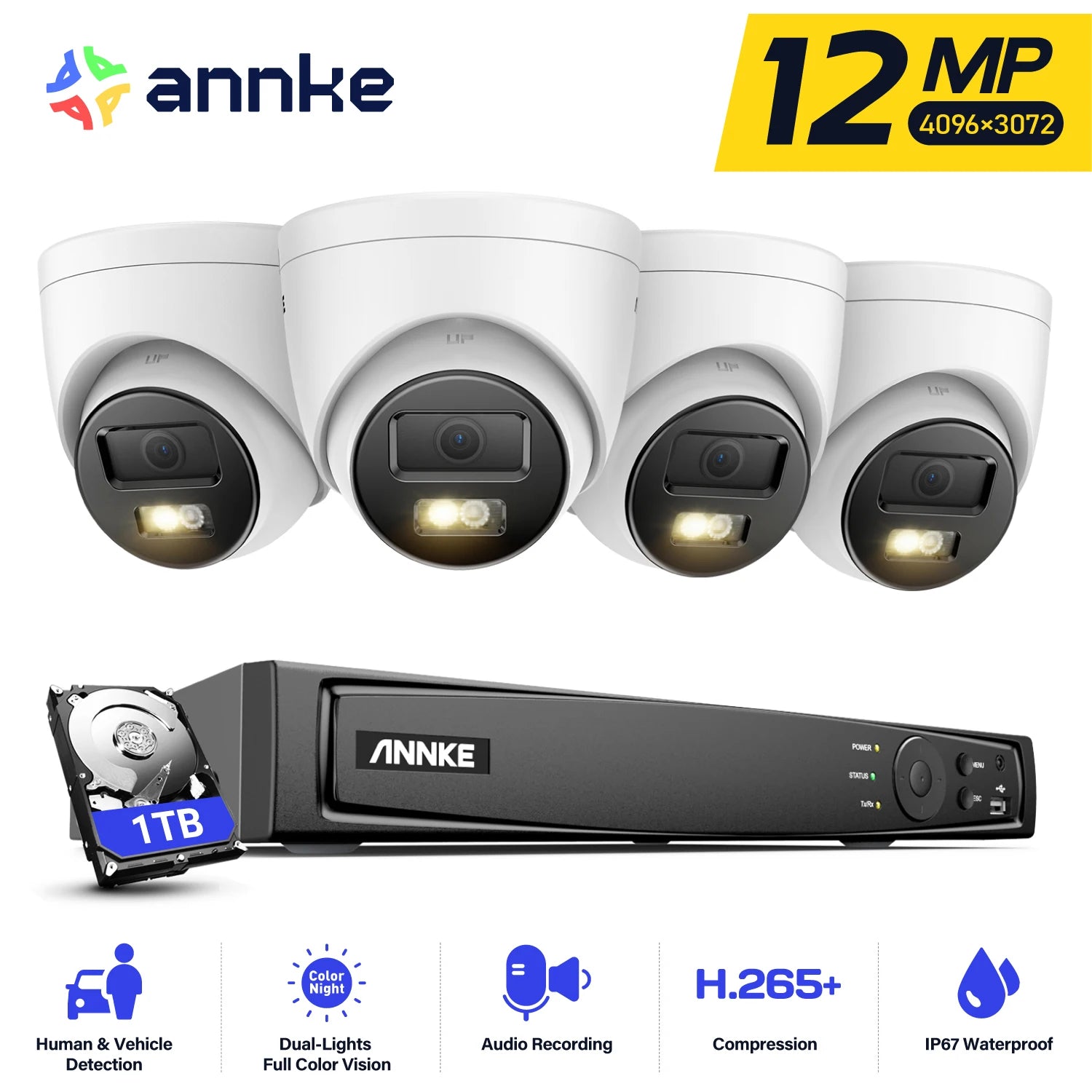

ANNKE 12MP Dual Light Smart Surveillance Kit With POE Cameras
ANNKE 12MP Dual Light Smart Surveillance Kit With POE Cameras
Couldn't load pickup availability
You get true 12MP surveillance with four smart dual-light cameras and a PoE NVR that makes installation and expansion effortless.
- Four 12MP smart dual-light network cameras with 2.8mm lenses deliver high-detail footage and a built-in microphone for your real-time audio security.
- Efficient H.265+ compression keeps bandwidth and storage in check, with max recording and playback up to 12MP (4096x3072) at 30fps and HDMI output up to 4K.
- Smart motion detection 2.0 with human and vehicle targets helps you reduce false alarms, while up to 8-channel PoE input supports expandability.
- Rugged, weatherproof design with IP67 rating, outdoor-ready performance from -10°C to 55°C, plus on-board storage up to 512 GB and HDD support up to 8 TB.
NVR | ||
Video & Audio |
Decoding Format |
H.264+/H.264/H.265/H.265+ |
IP Video Input |
8CH PoE |
|
Video Output |
HDMI up to 4K (3840 × 2160), VGA up to 1080p(1920 × 1080) |
|
Audio Input/Output |
1/1 RCA |
|
Incoming/outgoing Bandwidth |
80/80 Mbps |
|
Max Recording Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Channel |
8CH |
|
Max Playback Capacity |
1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
|
Hard Drive |
HDD |
1 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity |
|
External Interface |
Network Interface |
1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
PoE |
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
|
USB interface |
USB 2.0*2 |
|
Smart Function |
Deep learning |
8-ch Human and vehicle targets detection(Need IP camera support) |
4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP) | ||
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting |
|
General |
Operating Power |
DC 48 V |
Power Consumption |
≤10 W (Without HDD and PoE) |
|
PoE: Max 25.5 W for Single Port | ||
Working Temperature |
14 °F ~ 131 °F/-10 °C ~+55 °C |
|
Dimensions (W X H X D) |
12.4” X 9.4” X 1.9”/315 X 240 X 48 mm |
|
Weight (Without Hard Disk) |
2.2 lbs/1 kg |
|
